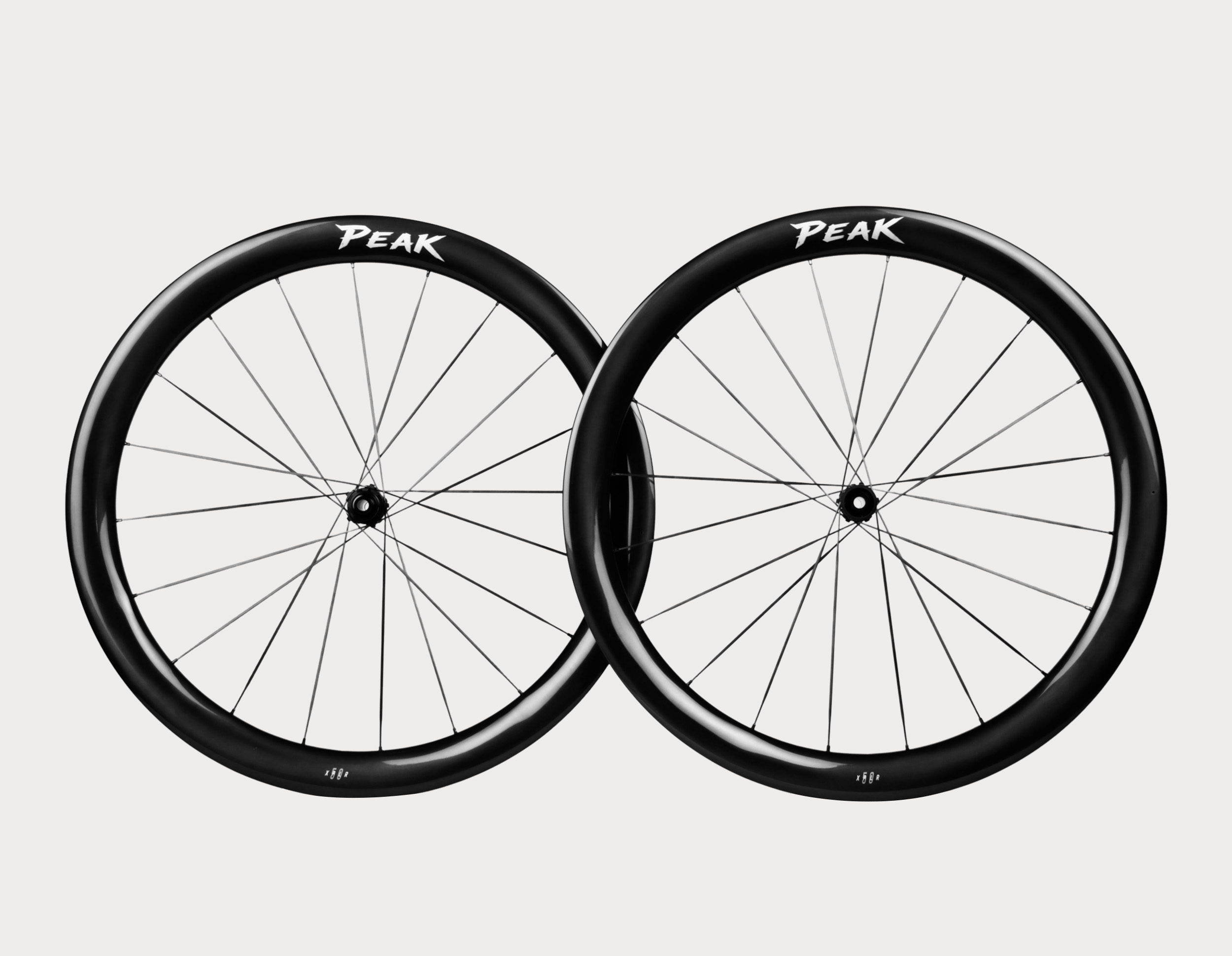

XPLR Peak 50
XPLR Peak 50 - Image 2
XPLR Peak 50 - Image 3
XPLR Peak 50 - Image 4
XPLR Peak 50 - Image 5
XPLR Peak 50 - Image 6

XPLR Peak 50

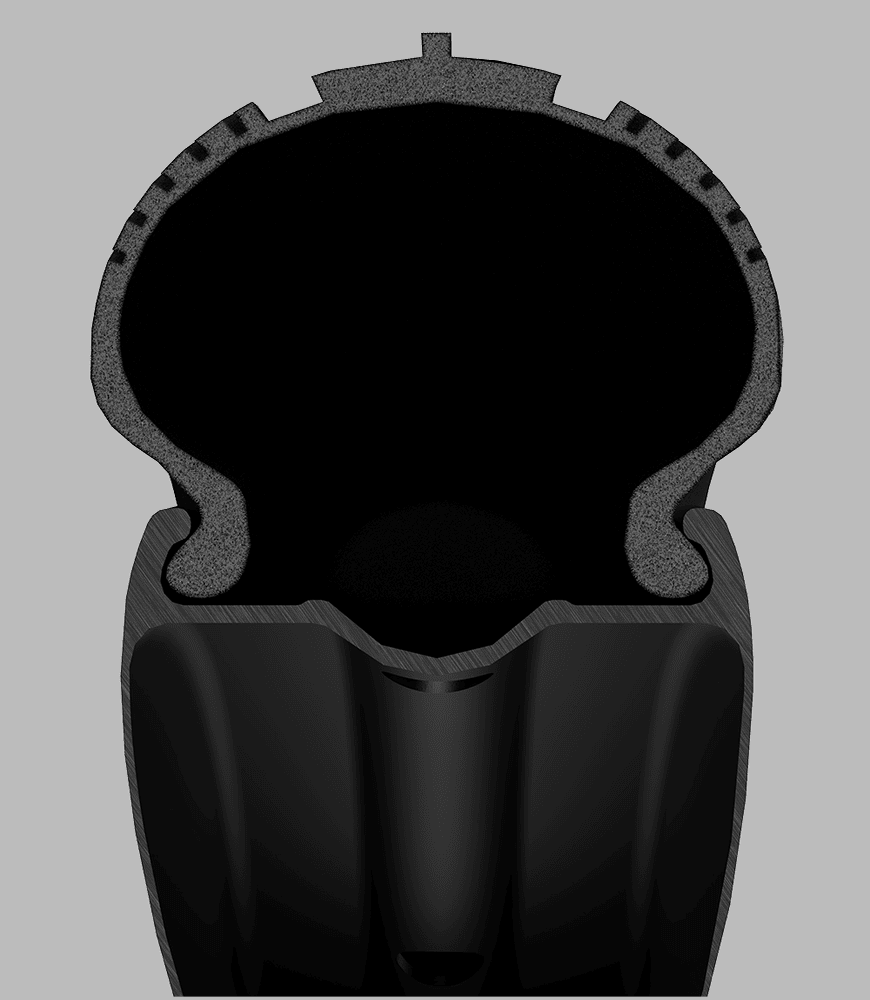

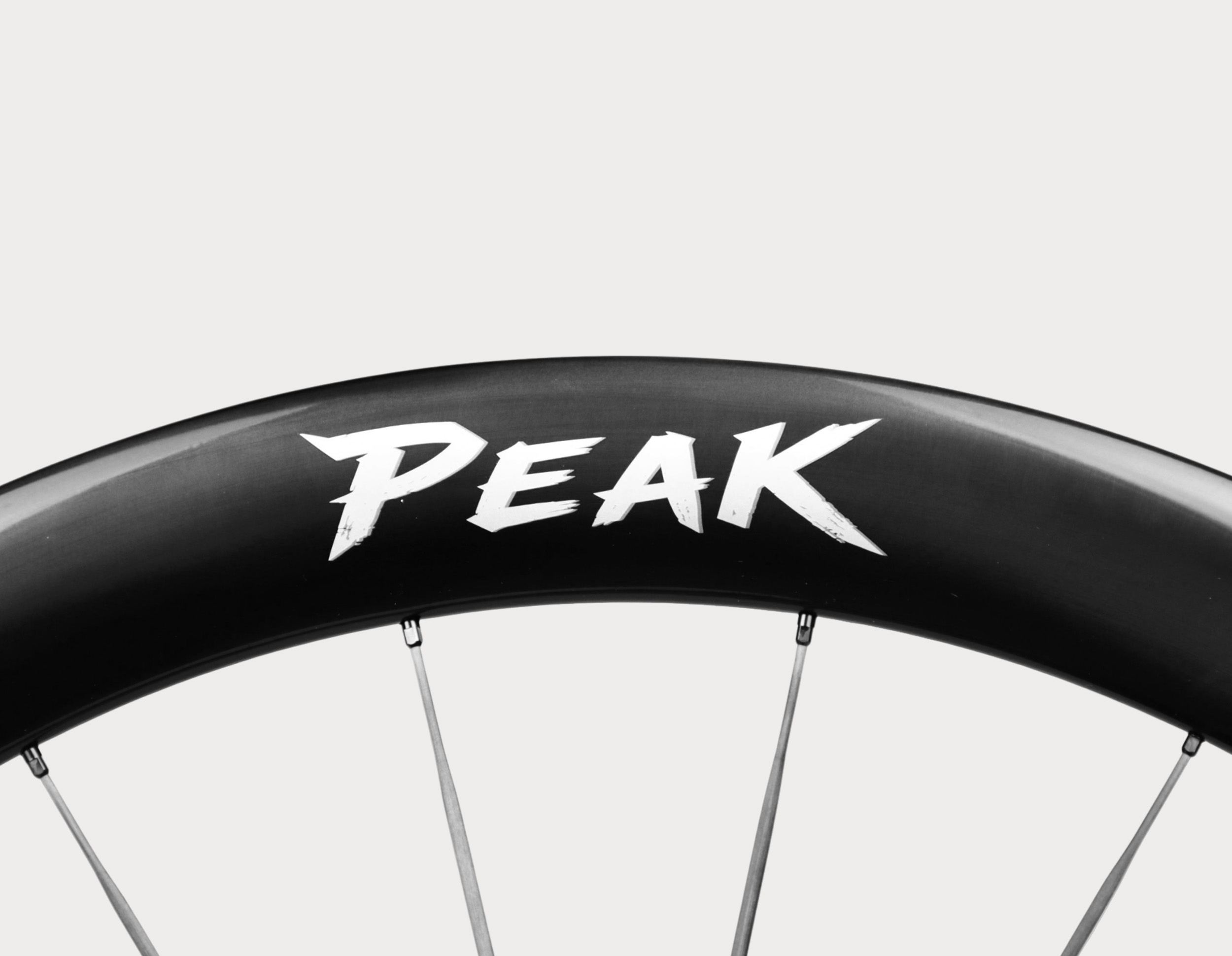

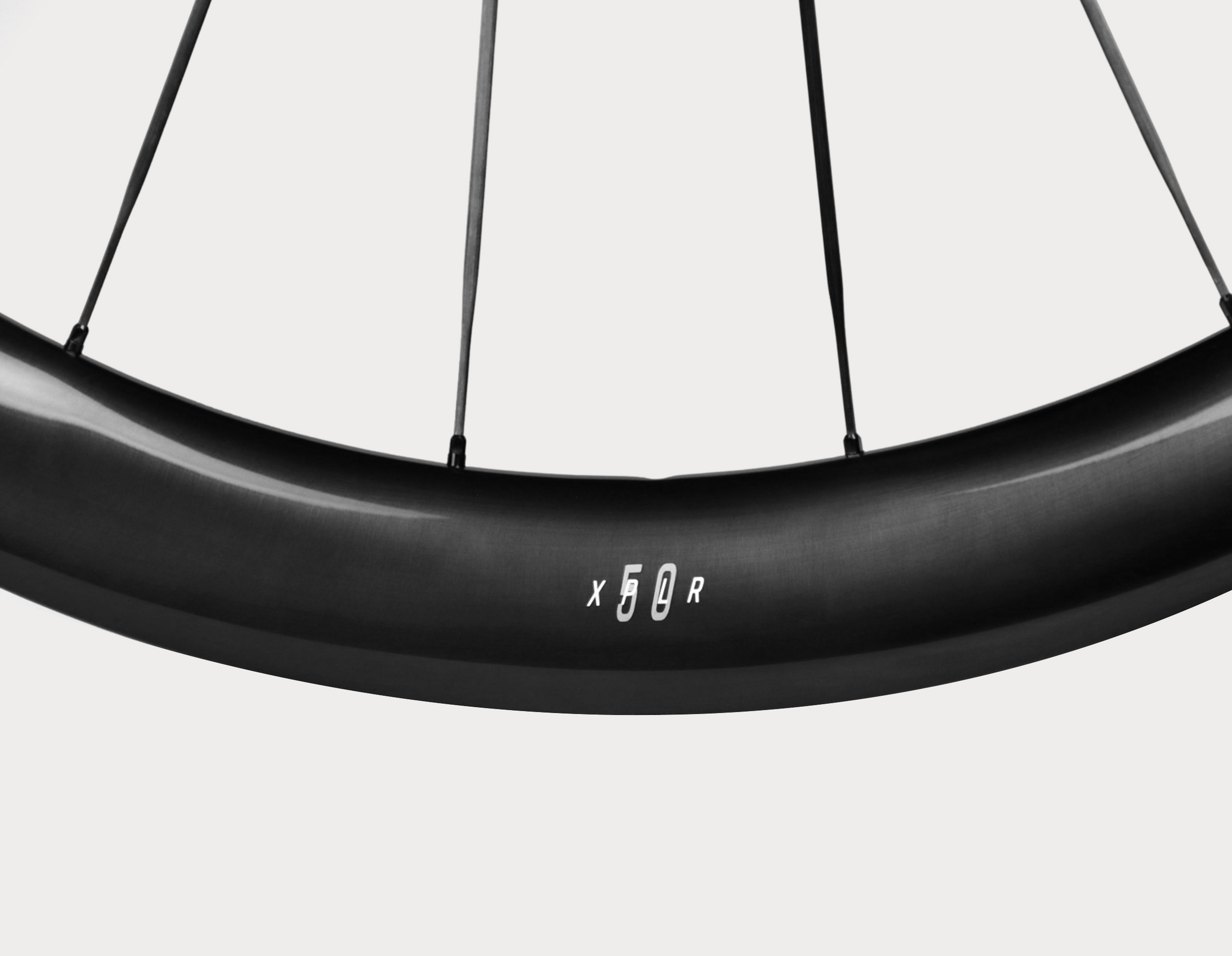

  • Rim Specs: Constructed from T800/T1000 carbon fiber, with a 50mm rim depth, 32mm inner width, disc brake gravel-specific design, tubeless ready, compatible with 700*36-64C tires, system weight limit of 110kg.

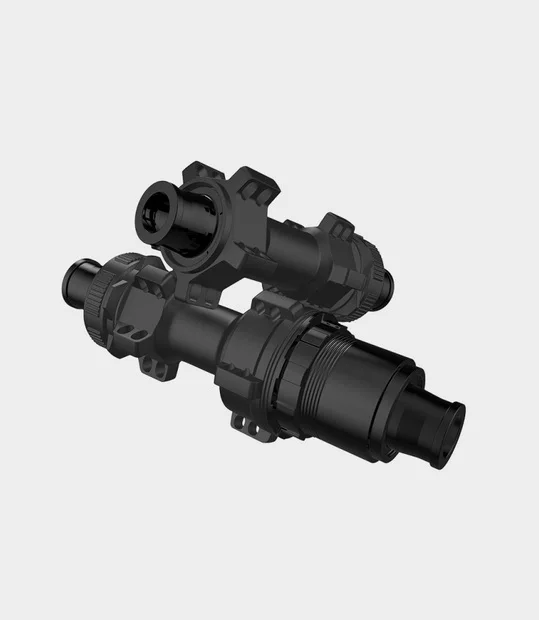

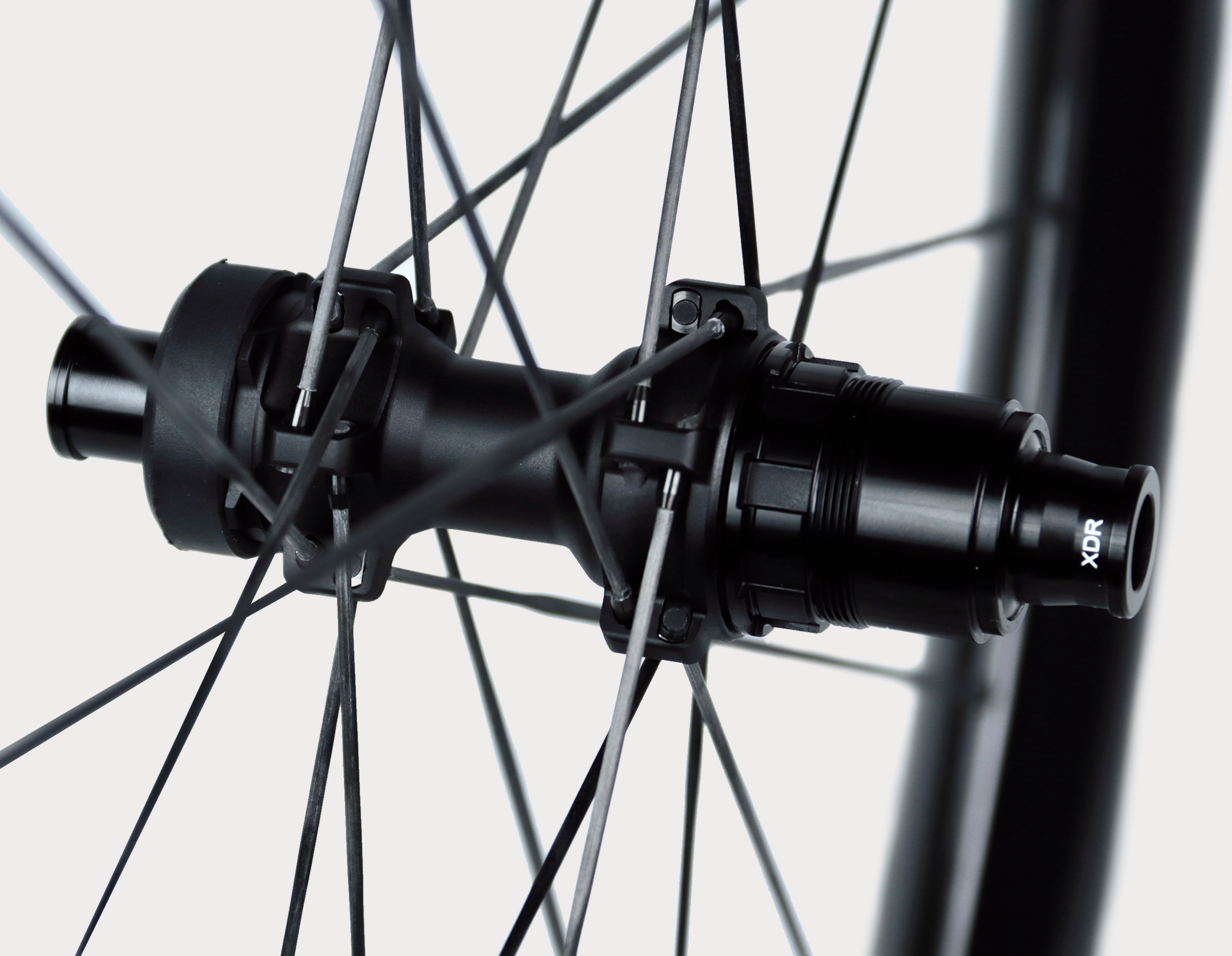

  • Hub System:  20/20H front and rear, featuring a 36T ratchet system with S&S steel bearings, center lock direct-pull design, compatible with 12*100mm/12*142mm thru-axle, optional Shimano HG or Sram XDR freehub body.

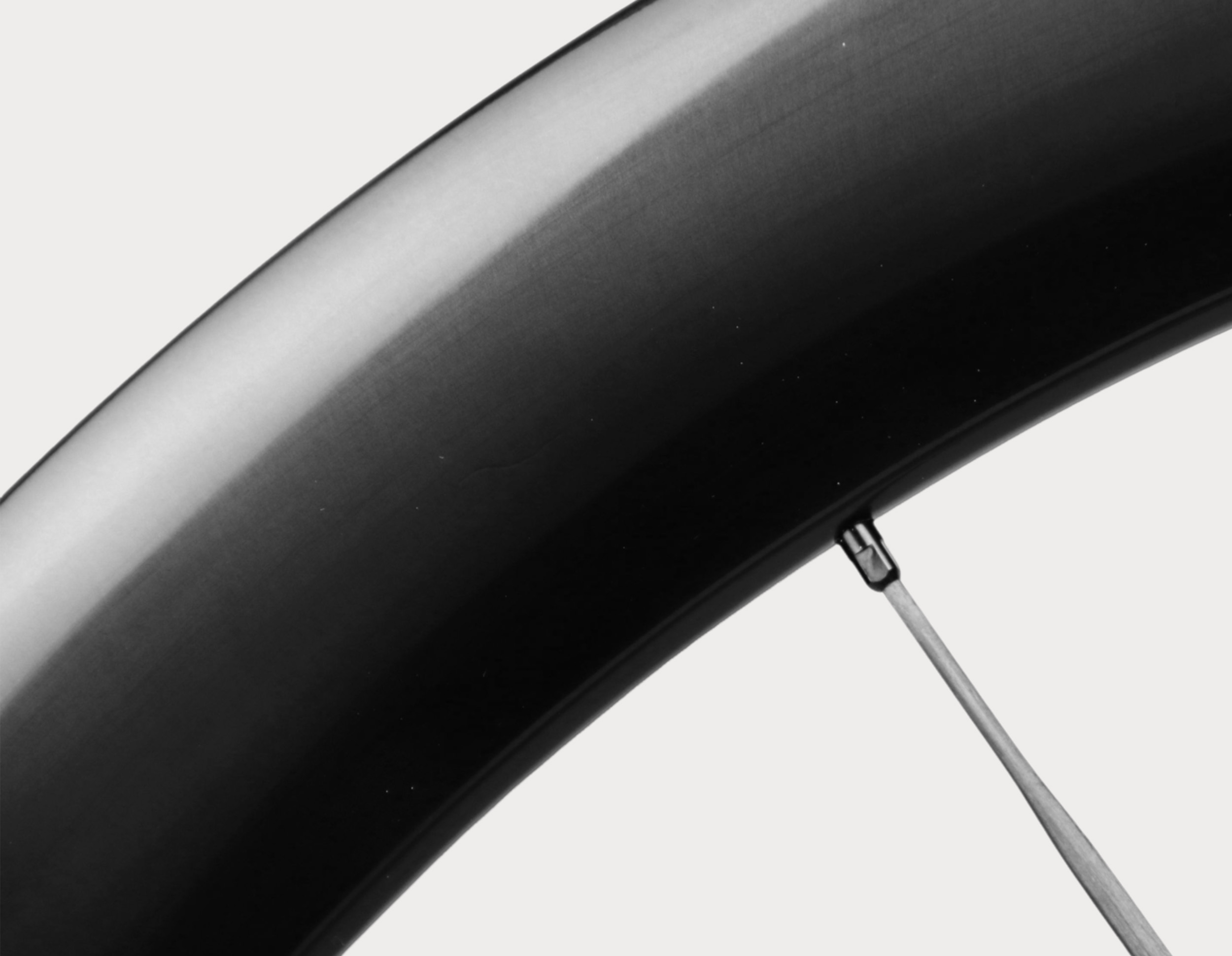

  • Spoke Structure: Featuring carbon spokes and stainless steel spoke nipples, the spokes are optimized for high-intensity gravel riding, balancing rigidity and durability.
  • Core Performance: This wheelset is designed specifically for gravel riding. The specially designed hubs and bearings enable ultra-smooth power transmission, while the T800+T1000 carbon fiber rims and carbon fiber spokes achieve a perfect balance between lightweight and impact resistance, making it an ideal choice for professional gravel racing and endurance off-road riding.

$900.00Pair

10 People watching this product now!

Payment Methods:

Specification

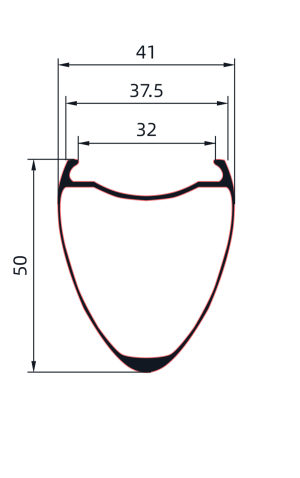

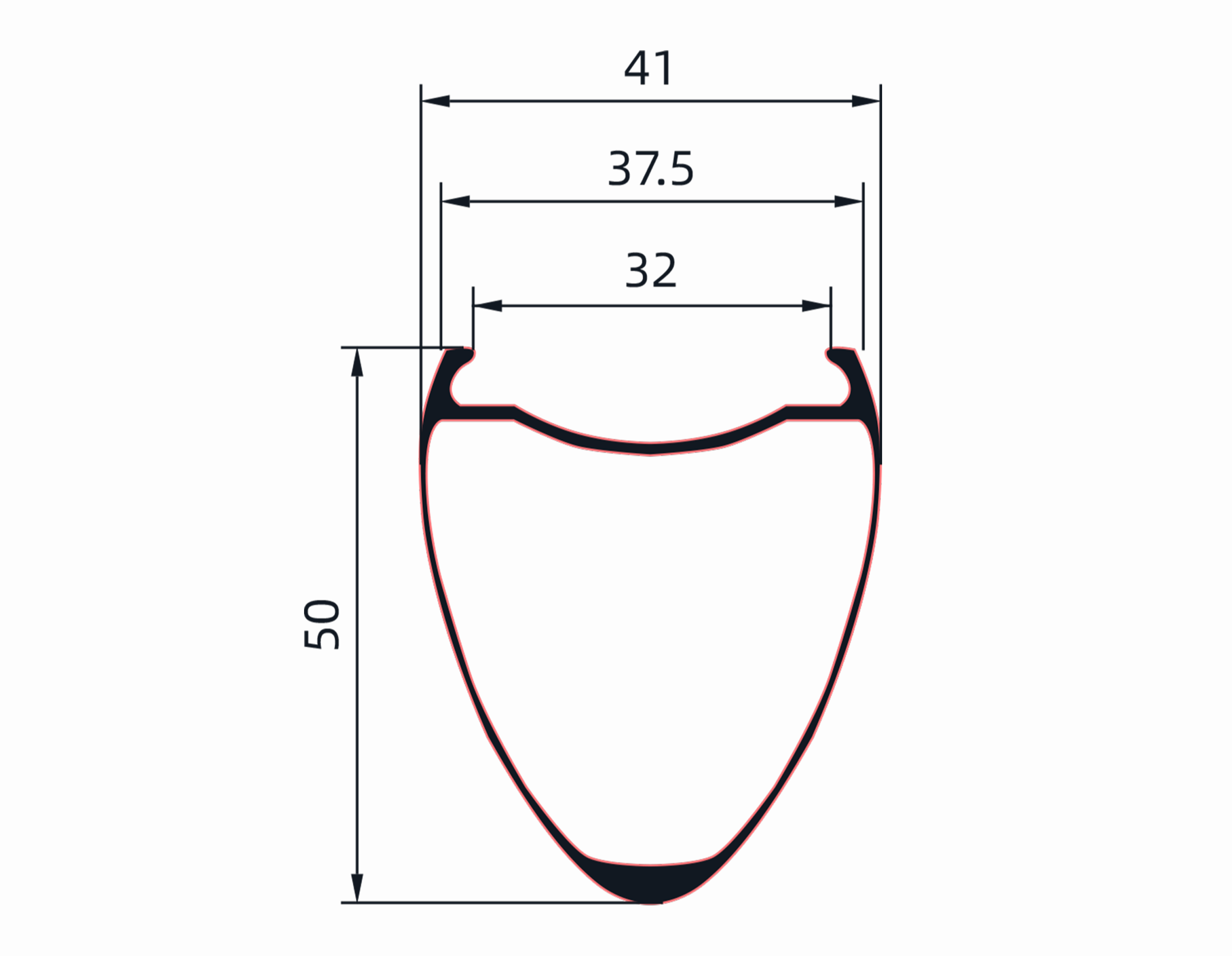

Rim
Rim Depth 50MM
Inner Width 32MM
Outer Width 41MM
Brake Interface Disc Brake
Tire Type Tubeless Ready
Max Weight Limit 110KG
Rim Material T800/T1000 Carbon Fiber
Rim Finish UD Gloss
Tyre Recommendation 700*35C to 55C
Hub
Front Wheel Hub Axle 12*100mm TA
Rear Wheel Hub Axle 12*142mm TA
Disc Brake Compatibility Disc Center Lock
Cassette Interface SHIMANO/SRAM XDR /SHIMANO MS
Freehub System Ratchet System 36T
Hub Bearings S&S Steel Bearing
Spoke
Spoke Model AERO 34
Spoke Count (F/R) 20/20
Front/Rear Wheel Lacing 2 CROSS, 1:1 Ratio
Spoke Specifications 2 CROSS, 1:1 Ratio
